Moza Aircross 3 Professional Kit





Foldable and Transformable

Reshape the Gimbal Forms with Possibilities

The Moza AirCross 3 is essentially four gimbals in one. Its foldable design allows you configure it in the way that best suits your filming style.




Configuration #1

Classic

This configuration is reminiscent of the classic one handed gimbal design. A tried and tested formula which continues to pack a punch in the filmmaking world.










Configuration #2

Sling Mode

This configuration allows you to use the gimbal in an underslung capacity allowing you to get low shots of your subject. To use this configuration, you will need to unfold the handle until it's in the locked position. At the bottom on the handle, you'll see an angled tread mount. Attach one tripod foot/handle here and the other just underneath the pan motor (Where the handle joined previously). You will then be able to to orientate the gimbal in sling mode and get filming.






Configuration #3

Dual Handle Mode

This configuration is for filmmakers who prefer to use a single vertical handle with one hand and a horizontal handle in the other allowing greater control for those cinematic moments. To use this configuration simple, unfold the handle to 90 degrees until it locks and screw the tripod in below the motor (Where the handle joined previously).








Configuration #4

Grip Extension

This configuration is the perfect companion for any Slypod series owners out there. Essentially the handle of the tripod can be moved out of the way so that access can be made to the tripod thread underneath the pan motor. This allows for seamless integration with your Slypod.









Compact Size

Storage Friendly, Easy to Pack and go!

The MOZA AirCross 3 is the size of an A4 piece of paper when folded down. Its impressively compact design allows you to pack it down in a matter of moments ready for the next shoot. It will fit easily into a camera bag, travel bag or even your daily backpack.






Included with the Pro Kit

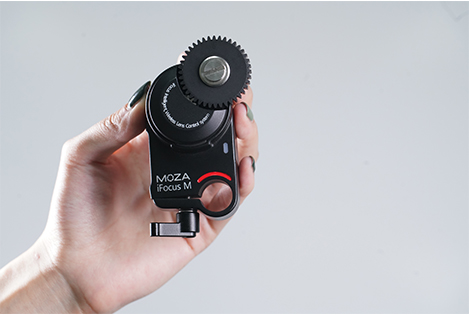

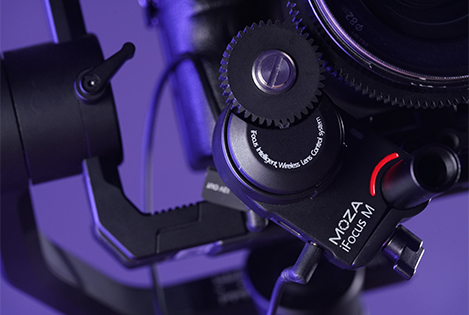

Moza iFocus-M - Ultra Compact Wireless Lens Control System made for the Air 2 only







Super-compact. Ultra-lightweight

Compactly designed, the iFocus-M is small in size, big in stature. With a body mass of only 88g, the Gimbal balance is not affected by this minimal weight increase.











Powerful yet quiet

The micro brushless motor has superior torque with low noise providing confident and reliable control. The iFocus-M gives you both power and accuracy. Precision fitted bearings and gears keep quiet even at high speed, ensuring your recording is completely unaffected.









Easy to use.

The iFocus-M is specially customized for the MOZA Air 2 eliminating the need for extra adapters and troublesome calibration. After connecting to the Air 2, the gimbal powers the iFocus-M removing addition battery requirements and restrictions.











The 4th Axis of Focus & Zoom Control.

When used with the Air 2, the iFocus-M becomes the fourth axis and an additional shooting tool for the gimbal, therefore users can control focus, zoom and iris of most DSLRs and mirrorless cameras via the gimbal handgrip.






iFocus Wireless Follow Focus Hand Unit








Wireless Follow Focus Handunit

iFocus systems customizes wireless follow focus handunit, which is compatible with all changes and is suitable for mounting on any tube or handle with a diameter ranging from 15mm to 33mm. It is perfectly compatible with various gimbals such as AIR/AIRCROSS, and can be freely matched with various shooting accessories such as Stannikon, tripod, monopod, lifting rod, slider, rocker arm, etc.











Complete with Accessories

The iFocus follow focus handunit built-in battery can be charged through the USB Type-C interface, and it can be powered by a mobile power supply anytime and anywhere while being charged. The handunit is also equipped with a replaceable marker ring, so you can mark the right position on the knob. The marker ring can be changed at any time when shooting different scenes and changing lenses, so that quick switching of multiple scenes can be easily realized.

Gimbal Weight: Tripod excluded: 1.3Kg
Tripod included: 1.5kg


Payload: 3.2kg


Dimension (mm): Unfolded Dimension: 170*190*310
Folded Dimension: 52*225*270


Charging: 5V 2A Slow Charging: 2.5H
9V 2A Fst Charging: 1.4H
Supports charging while using


Battery Type: Li-ion Intelligent Battery(built-in), 24.718Wh


Battery Voltage: 7.27V


Battery Capacity: 3500mAh


Longest Working Time: 20H


Motor Lock: Three-axis


Environmental Requirements: Working temperature: 10℃ -50℃
Charging temperature: 5℃-40℃


Bluetooth: BT5.0, 2.400 GHz -2.4835 GHz


Quick Release Plate: Manfrotto 5


Controlled Endpoint Range(°): Tilt axis: -90° - 180°
Roll axis: -95° - 235°
Pan axis :360°continuous rotation
